BETTOPUR STOP 102
BETTOPUR STOP 102
Polyurethane Based, One Component, Water Reactive, CFC and Solvent Free, Deep Injection Resin
MATERIAL DESCRIPTION
BETTOPUR STOP 102 is a one-component, polyurethane-based deep injection (resin) material that reacts with water to form an open-cell foam texture that also acts as a water shut-off and stabilization.

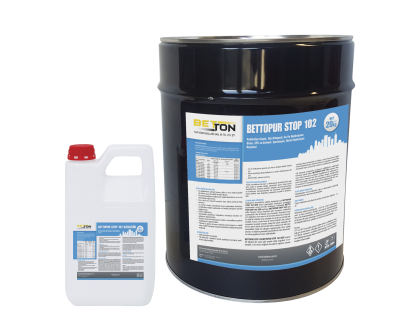

25 KG + 2 KG = 27 KG SET
Teknik Föy
AREAS OF USE
• Interception of water revenues in conditions of high
pressure, flow and velocity (including seawater),
• Binding and consolidation of loose rocks and ensuring water tightness,
• Binding of fine, medium fine-grained sands by creating a mortar effect
• Fastening of rock studs (bolts), self-drilling studs and rope anchors to the ground in sandy environments containing water,
• Deep injection
• Injection applications to cracks, gaps and immobile joints in the ground,
• Injection of insulation into accessible sewer lines and drains,
• It is used for filling large voids with resin mixture + reactive or non-reactive under high water passage and pressure.
ADVANTAGES
• Good adhesion to wet surfaces,
• One-component catalyst addition, can be applied by
injection pump,
• Reacts with water to form foam with an open cell texture,
• Use in deep injections and superior stabilization task,
• Economical, solvent-free.
APPLICATION METHOD
BETTOPUR STOP 102 ADD must be added to start the reaction in a controlled manner. Before starting the injection pumping, a predetermined amount of BETTOPUR STOP 102 ADD is added to the resin (BETTOPUR STOP 102). Here the reactivity of the mixture can be adjusted according to the existing conditions. Both components are thoroughly mixed. The mixture can be stored for at least 48 hours without significant viscosity increase, provided that it is protected from direct contact with moisture or water. However, a crust may form on the free surface of the liquid in contact with air due to moisture in the air. This generally has no effect on the resin underneath. However, it is recommended to scrape off this crust before application and thus prevent possible clogging in the pump.
BETTOPUR STOP 102/BETTOPUR STOP 102 ADD mix single
It is injected and applied like a component resin and hardens by a strong reaction when it comes into contact with water in the environment. If the amount of water in the environment is
insufficient to initiate the reaction of the resin mixture, water can be injected into the environment before, during or after the application.
Compared to two-component systems, the BETTOPUR STOP 102 resin in the injection hose does not freeze. However, it must be ensured that all valves are closed to prevent water ingress into the hose and to prevent hardening reaction. Nevertheless, as a general practice, it is recommended to protect the pump and valves from possible sedimentation and blockages by rinsing with PU solvent cleaner.;
